3BF387EX, Módulo de integración, BALAY

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BF387EX
• USP_MAIN
• ART_NUM 3BF387EX
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY noData
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING Botón
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 252
• CURRENT 3
• VOLTAGE 220-240
• FREQUENCY 60; 50
• CERTIFICATES
• CORD_LGTH 150
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY noData
• HEIGHT 345
• WIDTH 860
• DEPTH 282
• HEIGHT_PACKED 385
• WIDTH_PACKED 480
• DEPTH_PACKED 947
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN 836
• WIDTH_NICHE_SIZE_MAX 836
• DEPTH_NICHE_SIZE 264
• WEIGHT_NET 12.9
• WEIGHT_GROSS 14.5
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX noData
• CHIMNEY_HEIGHT_EXHAUST_MIN noData
• CHIMNEY_HEIGHT_RECIRC_MAX noData
• CHIMNEY_HEIGHT_RECIRC_MIN noData
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A+
• ENERGY_ANNUAL 44.3
• FLUID_DYNAMIC_EFFICIENCY 35.5
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 159.0
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 75.1
• GREASE_FILTER_CLASS C
• AIR_FLOW_MAX 625
• AIR_FLOW_MIN 300
• AIR_FLOW_BOOST 780.0
• SOUND_POWER_MAX 62
• SOUND_POWER_MIN 46
• SOUND_POWER_BOOST 66
• POWER_CONS_STANDBY 0.49
• POWER_OFF_MODE_2010 noData
• NOISE 62
• NOISE_BOOST 66
• ECO_LABEL
• MANUAL_CONTROL_DEVICES Teclas de corto recorrido
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 250
• MAX_OUTPUT_EXTRACTION 625
• BOOST_OUTPUT_EXTRACTION 780
• MAX_OUTPUT_RECIRCULATION 600
• BOOST_OUTPUT_RECIRCULATION 745
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER 2
• LUMINANCE_TOTAL 350
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS noData
• LAMPS_TYPE LED

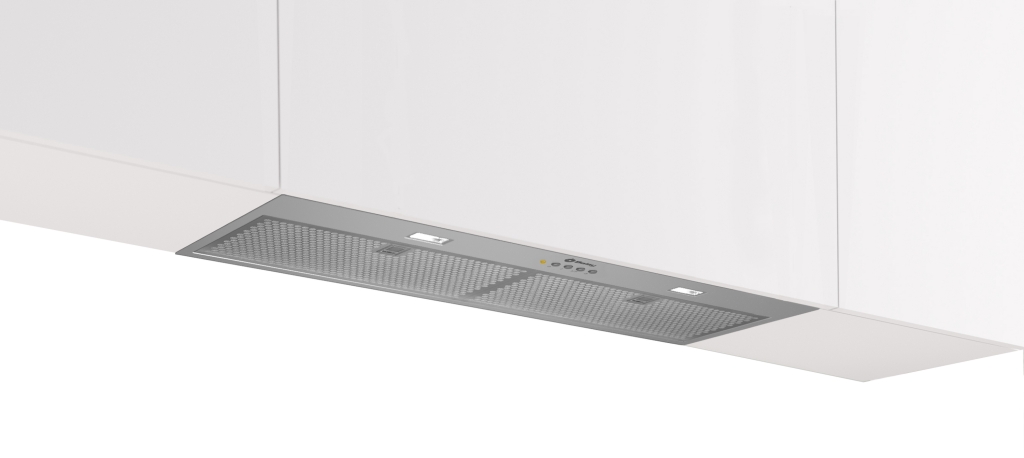

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/24867990_3BF387EX_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/26098430_3BF387EX_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/26098431_3BF387EX_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/26098435_3BF387EX_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/26098432_3BF387EX_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/26098433_3BF387EX_PGA5_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/26098419_3BF387EX_PGA6_def.jpg
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Adaptable a cada espacio y cocina. Posibilidad de instalación en recirculación.
• USP_2 Iluminación LED: la más efectiva, duradera y eficiente, para no perder detalle.
• USP_3 Gran potencia de extracción: el mejor ambiente para cocinar.
• USP_4 La instalación en recirculación te permite disfrutar de aire limpio aunque la cocina no tenga salida de humos.
• USP_5 Filtros de acero inoxidable con un diseño moderno y fácil limpieza.
