LB57NPC60, Módulo de integración, SIEMENS

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LB57NPC60
• USP_MAIN Módulo de integración con gran potencia, diseñado para desaparecer en el armario.
• ART_NUM LB57NPC60
• COL_BODY_HOODS Negro
• MAT_BODY Acero inoxidable
• COL_CHIMNEY
• MAT_CHIMNEY
• TYPOLOGY
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING Botón
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 172
• CURRENT 3
• VOLTAGE 220-240
• FREQUENCY 60; 50
• CERTIFICATES
• CORD_LGTH 150
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY
• HEIGHT 345
• WIDTH 520
• DEPTH 282
• HEIGHT_PACKED 385
• WIDTH_PACKED 480
• DEPTH_PACKED 607
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN 496
• WIDTH_NICHE_SIZE_MAX 496
• DEPTH_NICHE_SIZE 264
• WEIGHT_NET 10.1
• WEIGHT_GROSS 11.3
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX
• CHIMNEY_HEIGHT_EXHAUST_MIN
• CHIMNEY_HEIGHT_RECIRC_MAX
• CHIMNEY_HEIGHT_RECIRC_MIN
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010
• ENERGY_ANNUAL 29.9
• FLUID_DYNAMIC_EFFICIENCY 37.6
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 136.0
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 65.1
• GREASE_FILTER_CLASS D
• AIR_FLOW_MAX 555
• AIR_FLOW_MIN 255
• AIR_FLOW_BOOST 755.0
• SOUND_POWER_MAX 63
• SOUND_POWER_MIN 45
• SOUND_POWER_BOOST 70
• POWER_CONS_STANDBY 0.49
• POWER_OFF_MODE_2010
• NOISE 63
• NOISE_BOOST 70
• ECO_LABEL
• MANUAL_CONTROL_DEVICES Teclas de corto recorrido
• AUTOMATIC_CONTROL_DEVICES
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 170
• MAX_OUTPUT_EXTRACTION 555
• BOOST_OUTPUT_EXTRACTION 755
• MAX_OUTPUT_RECIRCULATION 530
• BOOST_OUTPUT_RECIRCULATION 710
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER 2
• LUMINANCE_TOTAL 300
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES LZ10ITP00,LZ11ITD11,LZ11IXB16,LZ11IXC16,LZ55750
• SPEED_SETTINGS
• LAMPS_TYPE LED

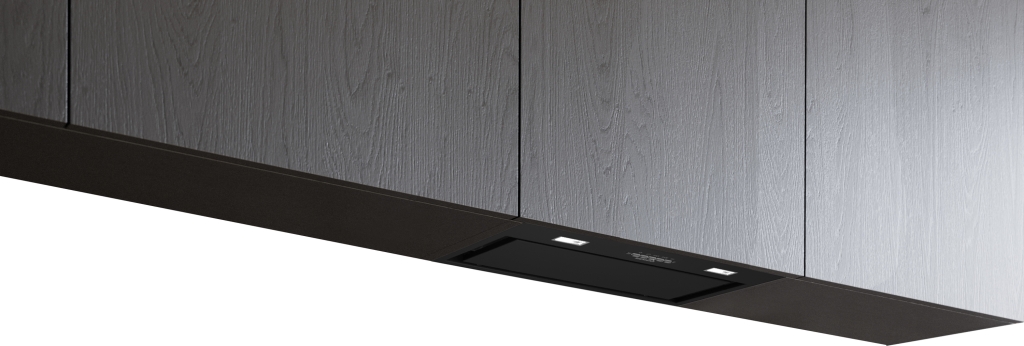

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/24820792_LB57NPC60_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/25746430_LB57NPC60_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/25746431_LB57NPC60_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/25746432_LB57NPC60_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/25746433_LB57NPC60_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/25746434_LB57NPC60_PGA5_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/25746427_LB57NPC60_PGA6_def.jpg
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 El modo intensivo aumenta la capacidad de extracción cuando se necesita, y se desconecta automáticamente transcurridos INTENSIVSTUFENRUECKST_DAUER.
• USP_2 Motor iQdrive: motor silencioso y de alto rendimiento que elimina todos los humos y olores.
• USP_3 Integración perfecta: gracias a su instalación enrasada, es prácticamente invisible.
• USP_4 Saturación de filtros antigrasa: indicador automático para limpiar tus filtros antigrasa.
• USP_5 Control electrónico: fácil manejo de la campana sin complicaciones.
