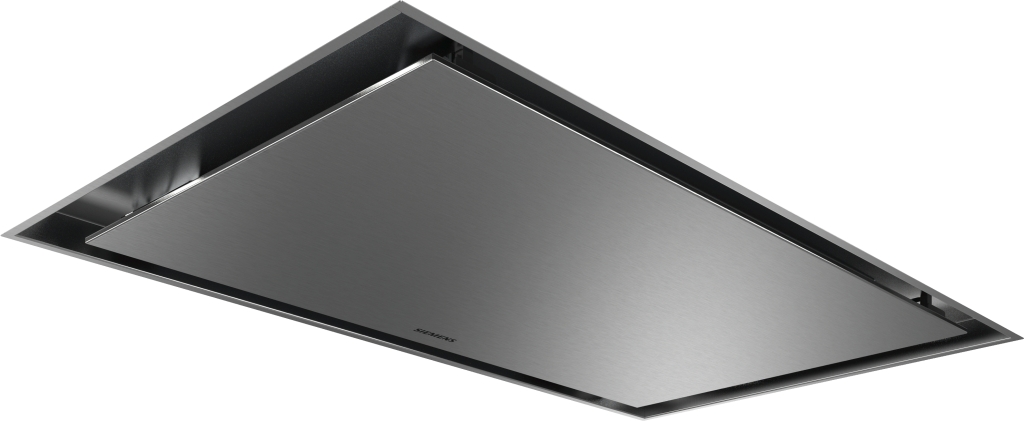

LR97CAQ50, Extractor de techo, SIEMENS

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LR97CAQ50
• USP_MAIN El nuevo extractor de techo atrae por su elevada potencia de extracción y su elegante diseño.
• ART_NUM LR97CAQ50
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY
• MAT_CHIMNEY
• TYPOLOGY Isla/Techo
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Isla
• CONTROL_SETTING Por app
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 174
• CURRENT
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY
• HEIGHT 300
• WIDTH 900
• DEPTH 500
• HEIGHT_PACKED 590
• WIDTH_PACKED 1040
• DEPTH_PACKED 620
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN 888
• WIDTH_NICHE_SIZE_MAX 888
• DEPTH_NICHE_SIZE 487
• WEIGHT_NET 20.1
• WEIGHT_GROSS 30.1
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX
• CHIMNEY_HEIGHT_EXHAUST_MIN
• CHIMNEY_HEIGHT_RECIRC_MAX
• CHIMNEY_HEIGHT_RECIRC_MIN
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A
• ENERGY_ANNUAL 34.0
• FLUID_DYNAMIC_EFFICIENCY 33.6
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 54.0
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 60.9
• GREASE_FILTER_CLASS E
• AIR_FLOW_MAX 459
• AIR_FLOW_MIN 265.6
• AIR_FLOW_BOOST 799.0
• SOUND_POWER_MAX 56
• SOUND_POWER_MIN 41
• SOUND_POWER_BOOST 68
• POWER_CONS_STANDBY 0.32
• POWER_OFF_MODE_2010
• NOISE 56
• NOISE_BOOST 68
• ECO_LABEL
• MANUAL_CONTROL_DEVICES no tiene
• AUTOMATIC_CONTROL_DEVICES
• REMOTE_CONTROL Si
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 160
• MAX_OUTPUT_EXTRACTION 459
• BOOST_OUTPUT_EXTRACTION 798
• MAX_OUTPUT_RECIRCULATION 422
• BOOST_OUTPUT_RECIRCULATION 565.0
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 4
• LAMPS_TOTAL_POWER
• LUMINANCE_TOTAL 659
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES LZ00XXP00,LZ20JCD20,LZ20JCD50,LZ21JCC26,LZ21JCC56
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE N/A
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02628361_LR97CAQ50_Ceiling_Vent_Siemens_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02775383_LR97CAQ50_Ceiling_Vent_Siemens_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02776663_LR97CAQ50_Ceiling_Vent_Siemens_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02776696_LR97CAQ50_Ceiling_Vent_Siemens_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02776775_LR97CAQ20_Filter_Siemens_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02776795_LR97CAQ20_Remote_Control_Siemens_PGA6_def.jpg
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Motor iQdrive: motor silencioso y de alto rendimiento que elimina todos los humos y olores.
• USP_2 Control placa-campana: controla la potencia y los ajustes de la campana desde la placa.
• USP_3 voiceControl: controla la potencia de extracción con tu voz.
• USP_4 Home Connect: la aplicación que hace más inteligente a tu campana.
• USP_5 Diagnóstico remoto: mantenimiento y reparación más fácil.
