3BD967GN, Campana decorativa integrable, BALAY

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BD967GN
• USP_MAIN
• ART_NUM 3BD967GN
• COL_BODY_HOODS Negro
• MAT_BODY Esmaltada
• COL_CHIMNEY noData
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING noData
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 256
• CURRENT noData
• VOLTAGE 220-240
• FREQUENCY 50
• CERTIFICATES
• CORD_LGTH 130
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 60
• HEIGHT 60
• WIDTH 597
• DEPTH 298
• HEIGHT_PACKED 574
• WIDTH_PACKED 654
• DEPTH_PACKED 674
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN 560
• WIDTH_NICHE_SIZE_MAX 560
• DEPTH_NICHE_SIZE 300
• WEIGHT_NET 9.5
• WEIGHT_GROSS 15.0
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX noData
• CHIMNEY_HEIGHT_EXHAUST_MIN noData
• CHIMNEY_HEIGHT_RECIRC_MAX noData
• CHIMNEY_HEIGHT_RECIRC_MIN noData
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 B
• ENERGY_ANNUAL 62.7
• FLUID_DYNAMIC_EFFICIENCY 27.6
• FLUID_DYNAMIC_CLASS B
• LIGHT_EFFICIENCY 71.6
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 90.2
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 460
• AIR_FLOW_MIN 264.6
• AIR_FLOW_BOOST 749.0
• SOUND_POWER_MAX 63
• SOUND_POWER_MIN 50
• SOUND_POWER_BOOST 73
• POWER_CONS_STANDBY 0.29
• POWER_OFF_MODE_2010 noData
• NOISE 63
• NOISE_BOOST 73
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 250
• MAX_OUTPUT_EXTRACTION 460
• BOOST_OUTPUT_EXTRACTION 749
• MAX_OUTPUT_RECIRCULATION 451
• BOOST_OUTPUT_RECIRCULATION 652
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER 6
• LUMINANCE_TOTAL 451
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS noData
• LAMPS_TYPE N/A

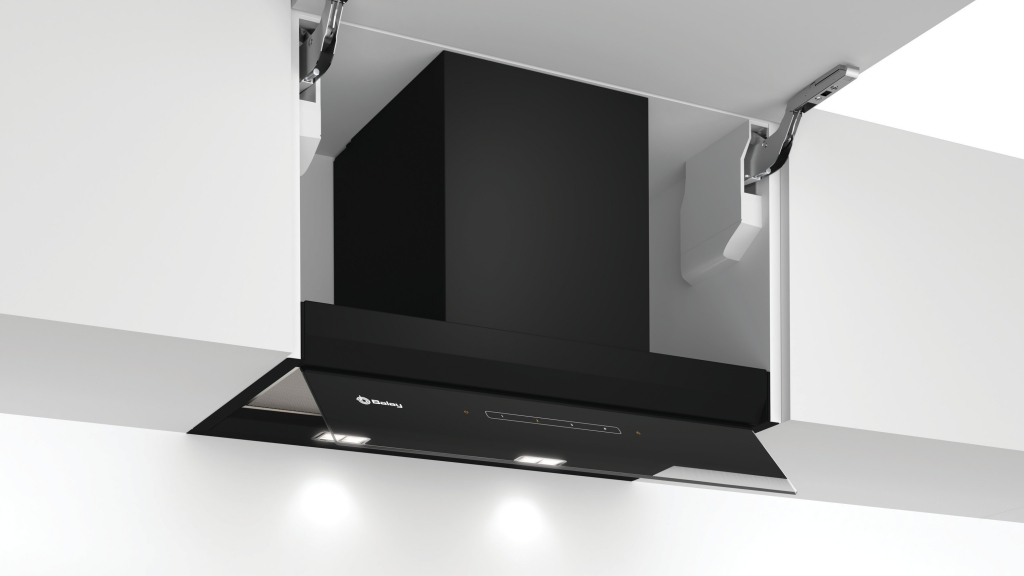

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/17719835_3BD967GN_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/17820234_3BD967GN_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/18263813_3BD967GN_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/19182421_3BD967GN_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/19203816_3BD967GN_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/19449386_3BD967GN_PGA5_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/19456383_3BD967GN_PGA6_def.jpg
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Adaptable a cada espacio y cocina. Posibilidad de instalación en recirculación.
• USP_2 Iluminación LED: la más efectiva, duradera y eficiente, para no perder detalle.
• USP_3 Gran potencia de extracción: el mejor ambiente para cocinar.
• USP_4 La instalación en recirculación te permite disfrutar de aire limpio aunque la cocina no tenga salida de humos.
• USP_5 Su visera de cristal protege tus muebles de humos y vapores.
