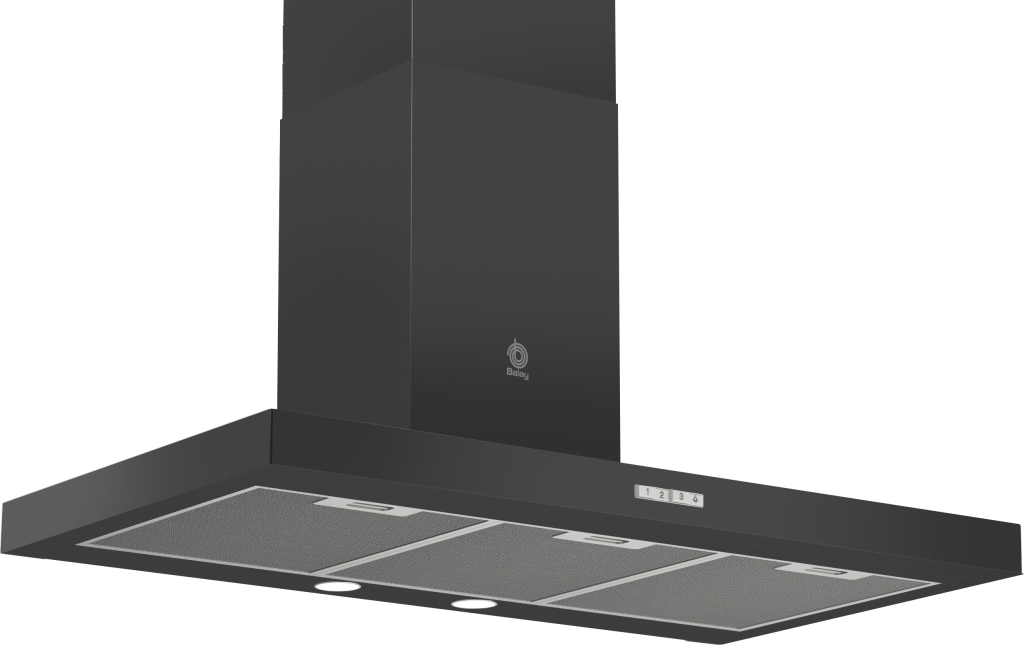

3BC095MN, Campana decorativa de pared box, BALAY

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BC095MN
• USP_MAIN Cada detalle de esta campana decorativa en isla, de moderno diseño rectangular, está pensado para aportarle robustez.
• ART_NUM 3BC095MN
• COL_BODY_HOODS Negro
• MAT_BODY Acero inoxidable
• COL_CHIMNEY Negro
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Mecánico
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Botón
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 216
• CURRENT noData
• VOLTAGE 220-240
• FREQUENCY 50
• CERTIFICATES
• CORD_LGTH 150
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 53
• HEIGHT 53
• WIDTH 898
• DEPTH 500
• HEIGHT_PACKED 580
• WIDTH_PACKED 1000
• DEPTH_PACKED 430
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 12.0
• WEIGHT_GROSS 21.5
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX 680
• CHIMNEY_HEIGHT_EXHAUST_MIN 415
• CHIMNEY_HEIGHT_RECIRC_MAX 770
• CHIMNEY_HEIGHT_RECIRC_MIN 495
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 D
• ENERGY_ANNUAL 100.9
• FLUID_DYNAMIC_EFFICIENCY 14.1
• FLUID_DYNAMIC_CLASS D
• LIGHT_EFFICIENCY 42.0
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 84.5
• GREASE_FILTER_CLASS C
• AIR_FLOW_MAX 527
• AIR_FLOW_MIN 245
• AIR_FLOW_BOOST noData
• SOUND_POWER_MAX 68
• SOUND_POWER_MIN 51
• SOUND_POWER_BOOST noData
• POWER_CONS_STANDBY 0.00
• POWER_OFF_MODE_2010 0.00
• NOISE 68
• NOISE_BOOST noData
• ECO_LABEL
• MANUAL_CONTROL_DEVICES Push buttons
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 210
• MAX_OUTPUT_EXTRACTION 527
• BOOST_OUTPUT_EXTRACTION noData
• MAX_OUTPUT_RECIRCULATION 280
• BOOST_OUTPUT_RECIRCULATION noData
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER 6
• LUMINANCE_TOTAL 276
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 120
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS 3
• LAMPS_TYPE LED
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/21395341_3BC095MN_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/22542046_3BC095MN_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/22542049_3BC095MN_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/22542048_3BC095MN_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/6902756_3BC095MX_PGA4_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Filtros de diseño tradicional de aluminio multicapa, de gran eficiencia y lavables en lavavajillas.
• USP_2 Iluminación LED: la más efectiva, duradera y eficiente, para no perder detalle.
• USP_3 La instalación en recirculación te permite disfrutar de aire limpio aunque la cocina no tenga salida de humos.
