LR26CBS20, Extractor de techo, SIEMENS

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LR26CBS20
• USP_MAIN El extractor de techo otorga un perfecto rendimiento y gran capacidad de extracción incluso en instalaciones donde el falso techo es de 20 cm de altura.
• ART_NUM LR26CBS20
• COL_BODY_HOODS Blanco
• MAT_BODY Acero inoxidable, Cristal
• COL_CHIMNEY
• MAT_CHIMNEY
• TYPOLOGY Isla/Techo
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Isla
• CONTROL_SETTING Por app
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 204
• CURRENT
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY
• HEIGHT 189
• WIDTH 1200
• DEPTH 500
• HEIGHT_PACKED 690
• WIDTH_PACKED 1340
• DEPTH_PACKED 640
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN 1186
• WIDTH_NICHE_SIZE_MAX 1186
• DEPTH_NICHE_SIZE 487
• WEIGHT_NET 28.1
• WEIGHT_GROSS 40.0
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX
• CHIMNEY_HEIGHT_EXHAUST_MIN
• CHIMNEY_HEIGHT_RECIRC_MAX
• CHIMNEY_HEIGHT_RECIRC_MIN
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 B
• ENERGY_ANNUAL 35.1
• FLUID_DYNAMIC_EFFICIENCY 28.9
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 62.8
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 59.9
• GREASE_FILTER_CLASS E
• AIR_FLOW_MAX 434
• AIR_FLOW_MIN 252.8
• AIR_FLOW_BOOST 735.0
• SOUND_POWER_MAX 61
• SOUND_POWER_MIN 47
• SOUND_POWER_BOOST 72
• POWER_CONS_STANDBY 0.48
• POWER_OFF_MODE_2010
• NOISE 61
• NOISE_BOOST 72
• ECO_LABEL
• MANUAL_CONTROL_DEVICES no tiene
• AUTOMATIC_CONTROL_DEVICES Sensor calidad del aire
• REMOTE_CONTROL Si
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 190
• MAX_OUTPUT_EXTRACTION 434
• BOOST_OUTPUT_EXTRACTION 734
• MAX_OUTPUT_RECIRCULATION 336
• BOOST_OUTPUT_RECIRCULATION 574.0
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 4
• LAMPS_TOTAL_POWER
• LUMINANCE_TOTAL 772
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES LZ21JCB11,LZ21JXC21,LZ21JXC51
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE N/A

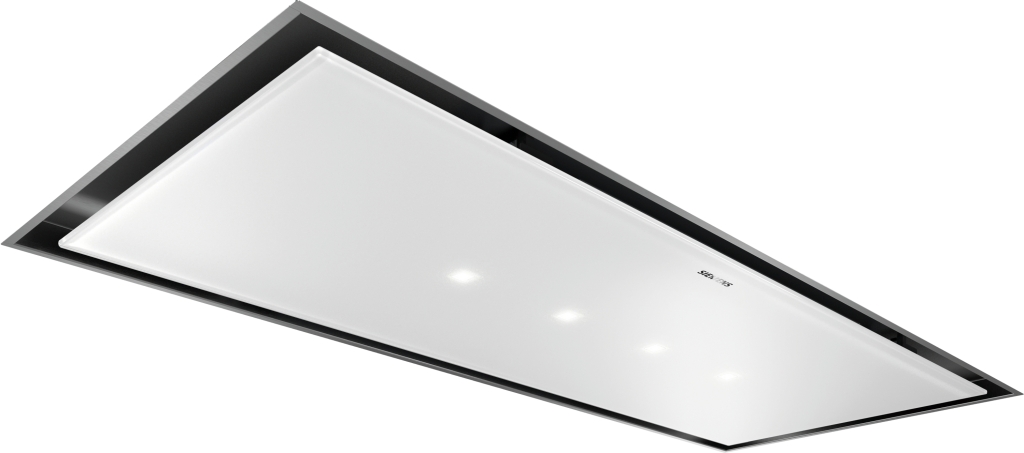

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02628364_LR27CBS20_Ceiling_Vent_Siemens_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA03237975_LR26CBS20_Ceiling_Vent_Siemens_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02776667_LR27CBS20_Ceiling_Vent_Siemens_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02776700_LR27CBS20_Ceiling_Vent_Siemens_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02776775_LR97CAQ20_Filter_Siemens_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA03281686_LR27CBS20_Ceiling_Vent_Siemens_PGA5_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02776795_LR97CAQ20_Remote_Control_Siemens_PGA6_def.jpg
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Motor iQdrive: motor silencioso y de alto rendimiento que elimina todos los humos y olores.
• USP_2 Home Connect: la aplicación que hace más inteligente a tu campana.
• USP_3 Función auto: sensor automático de calidad del ambiente
• USP_4 Control remoto: controla tu electrodoméstico desde cualquier parte.
• USP_5 Iluminación LED: perfecta y eficiente visibilidad cuando se está cocinando.
