LD98WMM60, Extractor de encimera telescópico, SIEMENS

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LD98WMM60
• USP_MAIN Extractor telescópico de encimera con tecnología Guided Air para una máxima eficiencia
• ART_NUM LD98WMM60
• COL_BODY_HOODS Negro
• MAT_BODY Cristal
• COL_CHIMNEY
• MAT_CHIMNEY
• TYPOLOGY Convencional
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING Por app
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 300
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY
• HEIGHT 709
• WIDTH 912
• DEPTH 140
• HEIGHT_PACKED 610
• WIDTH_PACKED 1140
• DEPTH_PACKED 870
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN 854
• WIDTH_NICHE_SIZE_MAX 854
• DEPTH_NICHE_SIZE 123
• WEIGHT_NET 39.7
• WEIGHT_GROSS 48.1
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX
• CHIMNEY_HEIGHT_EXHAUST_MIN
• CHIMNEY_HEIGHT_RECIRC_MAX
• CHIMNEY_HEIGHT_RECIRC_MIN
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A
• ENERGY_ANNUAL 37.8
• FLUID_DYNAMIC_EFFICIENCY 30.0
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY
• LIGHT_CLASS -
• GREASE_FILTER_EFFICIENCY 82.8
• GREASE_FILTER_CLASS C
• AIR_FLOW_MAX 519
• AIR_FLOW_MIN 229
• AIR_FLOW_BOOST 833.0
• SOUND_POWER_MAX 62
• SOUND_POWER_MIN 41
• SOUND_POWER_BOOST 71
• POWER_CONS_STANDBY 0.41
• POWER_OFF_MODE_2010
• NOISE 62
• NOISE_BOOST 71
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 300
• MAX_OUTPUT_EXTRACTION 519
• BOOST_OUTPUT_EXTRACTION 833
• MAX_OUTPUT_RECIRCULATION 456
• BOOST_OUTPUT_RECIRCULATION 596
• LIGHT_CNT_TYPE
• LIGHTS_NUMBER
• LAMPS_TOTAL_POWER
• LUMINANCE_TOTAL
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES HZ9VDSB1,HZ9VDSB2,HZ9VDSI0,HZ9VDSI1,HZ9VDSM1,HZ9VDSM2,HZ9VDSS1,LZ21WWB16,LZ21WWI17,LZ21WWJ12,LZ21WWM11,LZ29WWY12,LZ31WWX11,LZ31XXX11
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE N/A

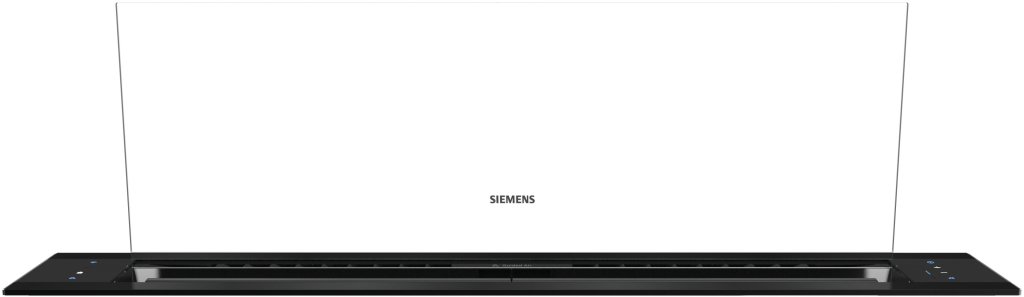

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/17645848_LD98WMM60_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/18228160_LD98WMM60_PGA4 Filter komplett_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/17778288_LD98WMM60_PGA1_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/17778411_LD98WMM60_PGA2_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/17778287_LD98WMM60_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/17778410_LD98WMM60_PGA5_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/17778289_LD98WMM60_PGA6_def.jpg
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Excelentes resultados de extracción desde todas las zonas de cocción gracias al motor iQDrive y la tecnología Guided Air.
• USP_2 Control placa-campana: controla la potencia y los ajustes de la campana desde la placa.
• USP_3 Home Connect: la aplicación que hace más inteligente a tu campana.
• USP_4 voiceControl: controla la potencia de extracción con tu voz.
• USP_5 Electrónica touchControl fácil manejo y diseño elegante.
