3BC998AXD, Campana decorativa de pared box

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BC998AXD
• USP_MAIN Cada detalle de esta campana de pared, de moderno diseño rectangular está pensado para aportarle robustez.
• ART_NUM 3BC998AXD
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY noData
• MAT_CHIMNEY Acero inoxidable
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING 2x7 segmentos;Touch control
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 165
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 46
• HEIGHT 46
• WIDTH 898
• DEPTH 500
• HEIGHT_PACKED 580
• WIDTH_PACKED 650
• DEPTH_PACKED 970
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 20.2
• WEIGHT_GROSS 26.5
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX 908
• CHIMNEY_HEIGHT_EXHAUST_MIN 582
• CHIMNEY_HEIGHT_RECIRC_MAX 1018
• CHIMNEY_HEIGHT_RECIRC_MIN 568
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A+
• ENERGY_ANNUAL 30.1
• FLUID_DYNAMIC_EFFICIENCY 34.9
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 60.8
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 89.6
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 430
• AIR_FLOW_MIN 273.2
• AIR_FLOW_BOOST 844.0
• SOUND_POWER_MAX 55
• SOUND_POWER_MIN 46
• SOUND_POWER_BOOST 69
• POWER_CONS_STANDBY 0.46
• POWER_OFF_MODE_2010 noData
• NOISE 55
• NOISE_BOOST 69
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES Sensor calidad del aire
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 160
• MAX_OUTPUT_EXTRACTION 430
• BOOST_OUTPUT_EXTRACTION 844
• MAX_OUTPUT_RECIRCULATION 353
• BOOST_OUTPUT_RECIRCULATION 457
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 3
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 389
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE LED

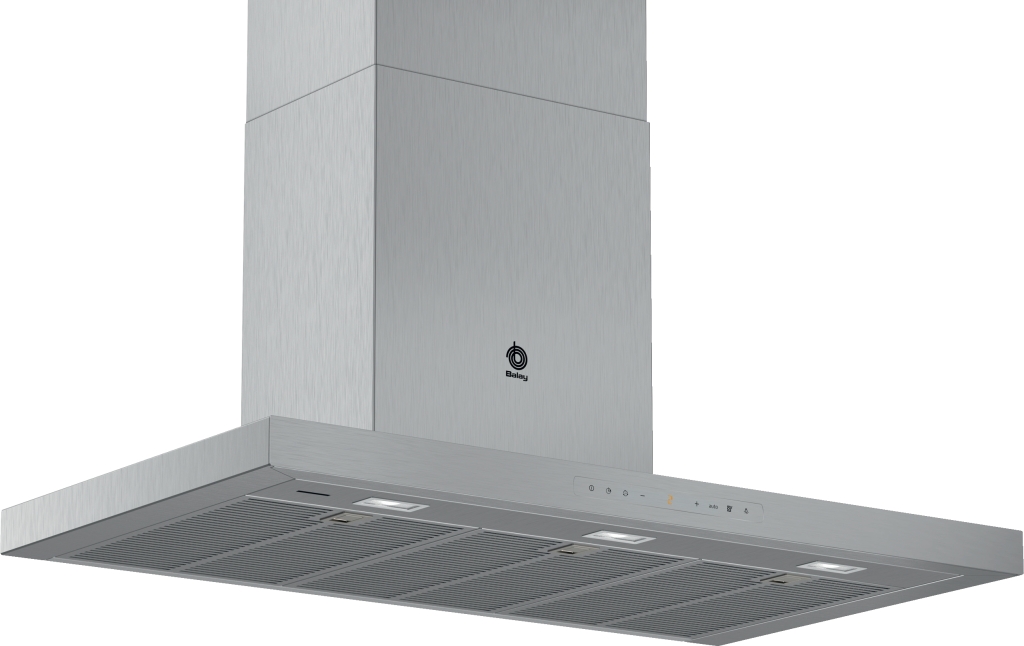

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02566600_3BC998AXC_ChimneyHood_Balay_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02678528_3BC998AXC_ChimneyHood_Balay_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02690864_3BC998AXC_ChimneyHood_Balay_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02696259_3BC998AXC_ChimneyHood_Balay_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02696304_edelstahlfilter_Balay_PGA4_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 El interior blindado, libre de aristas y cables, hace su limpieza fácil y segura.
• USP_2 Sensor de calidad del aire: autoregulación en función del humo y olor.
• USP_3 Función a intervalos: la campana se conecta sola unos minutos cada hora, para mantener el aire limpio.
• USP_4 Motor de alta eficiencia, que consume menos y con 10 años de garantía.
• USP_5 Home Connect: controla la campana desde el móvil sin necesidad de estar en la cocina.
