DWB97IM50, Campana decorativa de pared, BOSCH

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE DWB97IM50
• USP_MAIN Campana decorativa de pared: diseño propio y diferencial para tu cocina.
• ART_NUM DWB97IM50
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY Acero inoxidable
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Indicadores luminosos LED;Touch control
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 255
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 53
• HEIGHT 53
• WIDTH 900
• DEPTH 500
• HEIGHT_PACKED 490
• WIDTH_PACKED 650
• DEPTH_PACKED 1030
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 13.9
• WEIGHT_GROSS 19.1
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX 912
• CHIMNEY_HEIGHT_EXHAUST_MIN 583
• CHIMNEY_HEIGHT_RECIRC_MAX 1022
• CHIMNEY_HEIGHT_RECIRC_MIN 853
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 B
• ENERGY_ANNUAL 62.5
• FLUID_DYNAMIC_EFFICIENCY 26.7
• FLUID_DYNAMIC_CLASS B
• LIGHT_EFFICIENCY 61.1
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 91.1
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 454
• AIR_FLOW_MIN 266.6
• AIR_FLOW_BOOST 739.0
• SOUND_POWER_MAX 65
• SOUND_POWER_MIN 52
• SOUND_POWER_BOOST 74
• POWER_CONS_STANDBY 0.26
• POWER_OFF_MODE_2010 noData
• NOISE 65
• NOISE_BOOST 74
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 250
• MAX_OUTPUT_EXTRACTION 454
• BOOST_OUTPUT_EXTRACTION 739
• MAX_OUTPUT_RECIRCULATION 404
• BOOST_OUTPUT_RECIRCULATION 499
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 214
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES DHZ1225,DHZ1235,DWZ0XX0J0,DWZ1DX1I4,DWZ1DX1I6,DWZ1FX5C6,DZZ0XX0P0,DZZ1XX1B6
• SPEED_SETTINGS noData
• LAMPS_TYPE LED

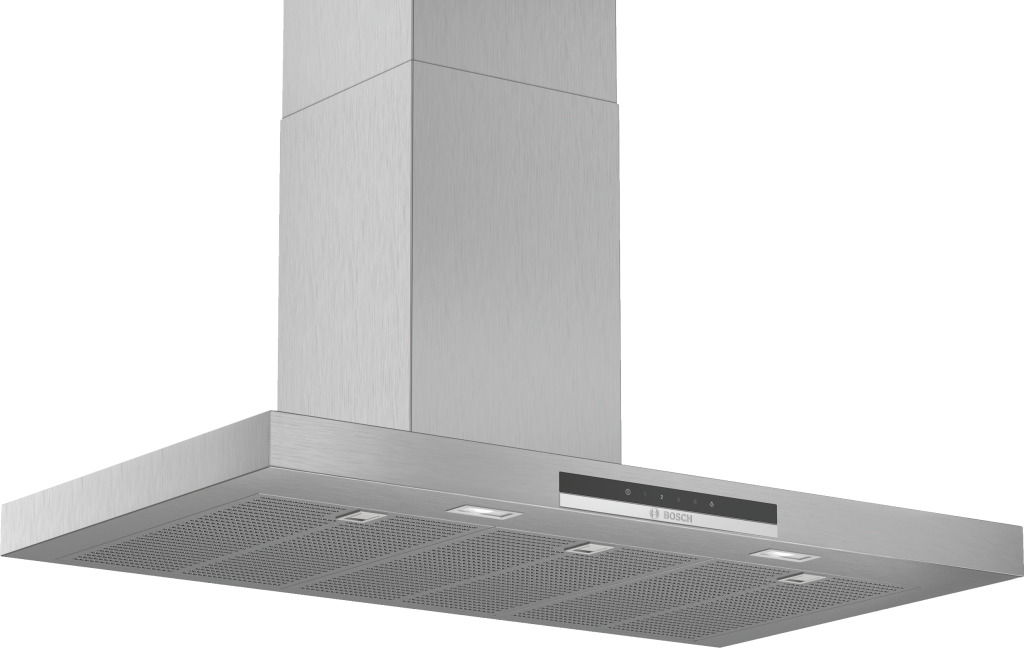

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02017832_DWB96IM51_ChimneyHood_Bosch_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02246809_DWB96IM50_ChimneyHood_Bosch_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02247207_DWB96IM51_ChimneyHood_Bosch_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02243309_DWB96IM51_ChimneyHood_Bosch_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02249121_DWB94BC51B_ChimneyHood_Bosch_PGA4_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Campana silenciosa: máxima potencia de extracción con el mínimo ruido.
• USP_2 Electrónica TouchSelect: controla los ajustes de la campana con un solo dedo.
• USP_3 Los filtros antigrasa se encargan de retener la mayor cantidad de grasa y particulas que hay en el aire, garantizando de esta manera el mejor rendimiento de la campana. Aptos para lavar en el lavavajillas.
