DIB97IM50, Campana decorativa de isla, BOSCH

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE DIB97IM50
• USP_MAIN Campana isla: la solución perfecta para las zonas de cocción en isla.
• ART_NUM DIB97IM50
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY Acero inoxidable
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Isla
• CONTROL_SETTING Indicadores luminosos LED;Touch control
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 256
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 60; 50
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 53
• HEIGHT 53
• WIDTH 898
• DEPTH 600
• HEIGHT_PACKED 840
• WIDTH_PACKED 610
• DEPTH_PACKED 1040
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 29.2
• WEIGHT_GROSS 39.7
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX 871
• CHIMNEY_HEIGHT_EXHAUST_MIN 691
• CHIMNEY_HEIGHT_RECIRC_MAX 991
• CHIMNEY_HEIGHT_RECIRC_MIN 691
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 B
• ENERGY_ANNUAL 74.3
• FLUID_DYNAMIC_EFFICIENCY 26.3
• FLUID_DYNAMIC_CLASS B
• LIGHT_EFFICIENCY 58.4
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 86.8
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 438
• AIR_FLOW_MIN 259.7
• AIR_FLOW_BOOST 754.0
• SOUND_POWER_MAX 57
• SOUND_POWER_MIN 45
• SOUND_POWER_BOOST 68
• POWER_CONS_STANDBY 0.20
• POWER_OFF_MODE_2010 noData
• NOISE 57
• NOISE_BOOST 68
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 250
• MAX_OUTPUT_EXTRACTION 438
• BOOST_OUTPUT_EXTRACTION 754
• MAX_OUTPUT_RECIRCULATION 390
• BOOST_OUTPUT_RECIRCULATION 527
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 4
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 409
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 150 / 120
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES DHZ1246,DHZ1251,DHZ1253,DHZ1256,DIZ2CB1I4,DIZ2CX5C6,DZZ0XX0P0,DZZ1XX1B6
• SPEED_SETTINGS noData
• LAMPS_TYPE LED

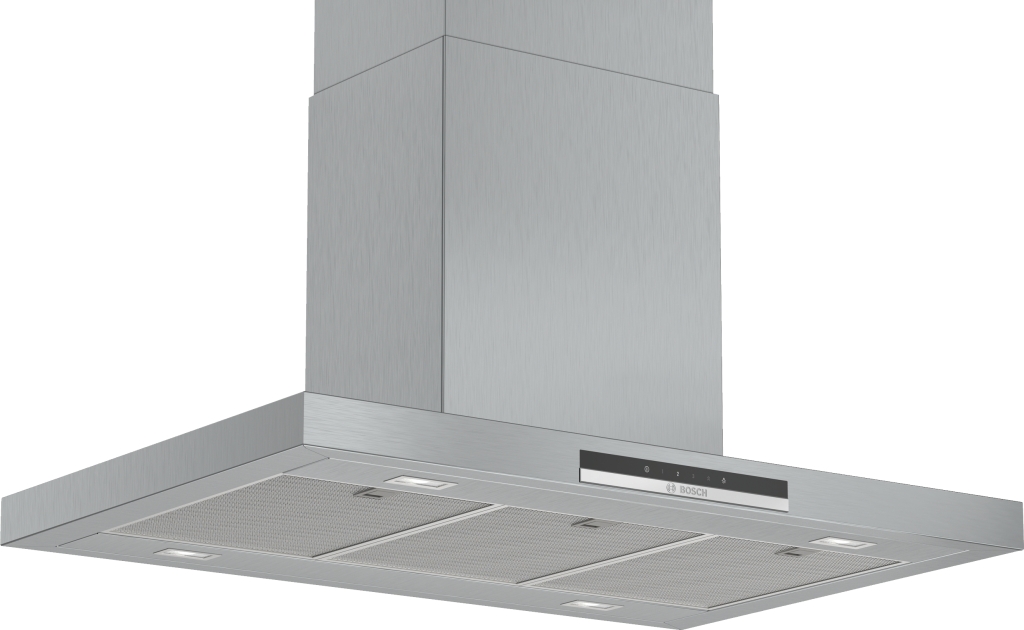

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02566144_DIB97IM50_ChimneyHood_Bosch_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02677293_DIB97IM50_ChimneyHood_Bosch_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02683923_DIB97IM50_ChimneyHood_Bosch_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02695368_DIB97IM50_ChimneyHood_Bosch_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02696281_StandardMeshfilter_Bosch_PGA4_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Campana ultrasilenciosa: máximo rendimiento, con mínimo ruido.
• USP_2 Interior blindado: limpieza fácil y segura.
• USP_3 Electrónica TouchSelect: controla los ajustes de la campana con un solo dedo.
