LF97BCP50, Campana decorativa de isla, SIEMENS

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LF97BCP50
• USP_MAIN La campana de isla que atrae por su gran poder de extracción y su espectacular diseño.
• ART_NUM LF97BCP50
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY Acero inoxidable
• MAT_CHIMNEY
• TYPOLOGY
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Isla
• CONTROL_SETTING Indicador 7 segmentos luminosos;Touch control
• FRONT_PANEL_OPTIONS
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 146
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 46
• HEIGHT 46
• WIDTH 898
• DEPTH 600
• HEIGHT_PACKED 840
• WIDTH_PACKED 610
• DEPTH_PACKED 1040
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN
• WIDTH_NICHE_SIZE_MAX
• DEPTH_NICHE_SIZE
• WEIGHT_NET 28.2
• WEIGHT_GROSS 38.6
• AIR_EXHAUST_AVAILABLE
• CHIMNEY_HEIGHT_EXHAUST_MAX 878
• CHIMNEY_HEIGHT_EXHAUST_MIN 698
• CHIMNEY_HEIGHT_RECIRC_MAX 998
• CHIMNEY_HEIGHT_RECIRC_MIN 698
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A
• ENERGY_ANNUAL 31.9
• FLUID_DYNAMIC_EFFICIENCY 32.6
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 55.3
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 89.4
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 444
• AIR_FLOW_MIN 305.8
• AIR_FLOW_BOOST 727.0
• SOUND_POWER_MAX 54
• SOUND_POWER_MIN 45
• SOUND_POWER_BOOST 65
• POWER_CONS_STANDBY 0.22
• POWER_OFF_MODE_2010
• NOISE 54
• NOISE_BOOST 65
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 140
• MAX_OUTPUT_EXTRACTION 444
• BOOST_OUTPUT_EXTRACTION 727
• MAX_OUTPUT_RECIRCULATION 343
• BOOST_OUTPUT_RECIRCULATION 442
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 4
• LAMPS_TOTAL_POWER
• LUMINANCE_TOTAL 409
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES LZ00XXP00,LZ12285,LZ12310,LZ12385,LZ12510,LZ12530,LZ22CBI14,LZ22CXC56,LZ22FXD51
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE LED

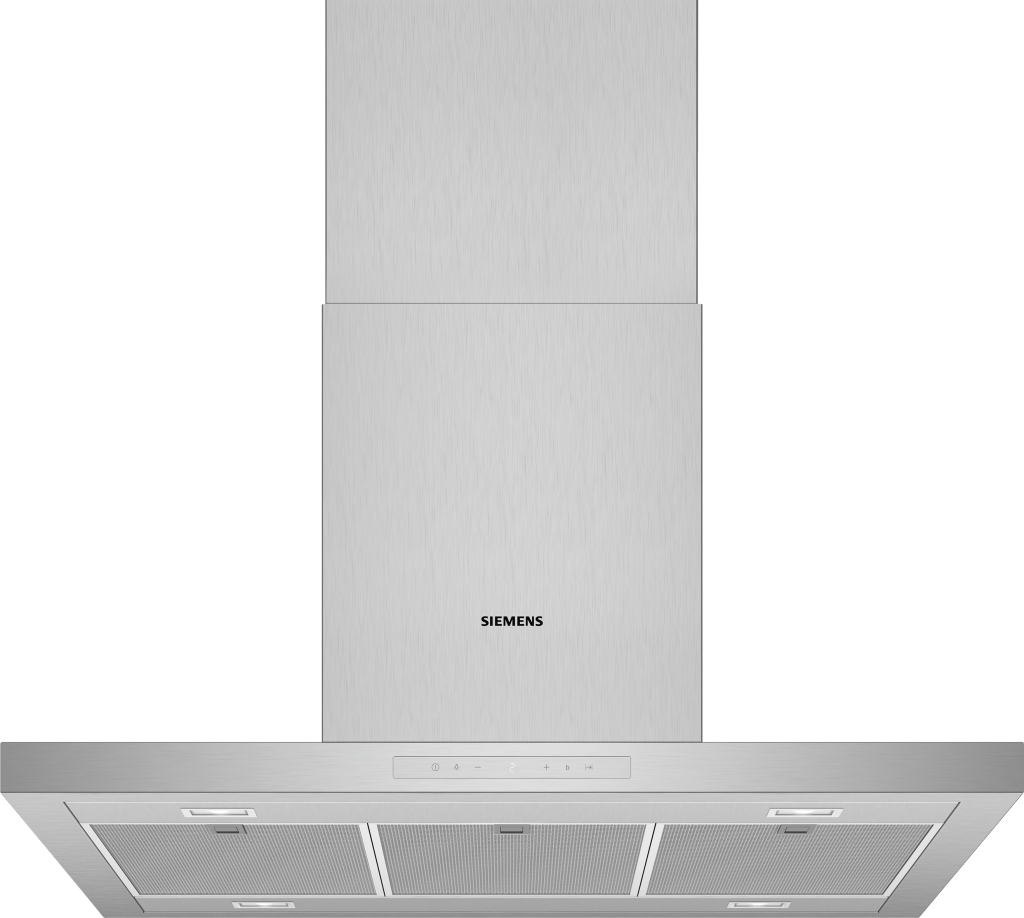

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02615716_LF97BCP50_ChimneyHood_Siemens_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02677312_LC97BCP50_ChimneyHood_Siemens_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02684043_LF97BCP50_ChimneyHood_Siemens_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02696290_StandardMeshfilter_Siemens_PGA4_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02696188_LF97BCP50_ChimneyHood_Siemens_PGA3_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Motor iQdrive: motor silencioso y de alto rendimiento que elimina todos los humos y olores.
• USP_2 Iluminación LED: perfecta y eficiente visibilidad cuando se está cocinando.
• USP_3 Electrónica touchControl fácil manejo y diseño elegante.
• USP_4 El nivel intensivo aumenta temporalmente la capacidad de extracción cuando los vapores son especialmente intensos.
