DWK87FN60, Campana decorativa de pared, BOSCH

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE DWK87FN60
• USP_MAIN
• ART_NUM DWK87FN60
• COL_BODY_HOODS Negro
• MAT_BODY Cristal, Esmaltada
• COL_CHIMNEY Negro
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Por app
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 140
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 320
• HEIGHT 320
• WIDTH 790
• DEPTH 433
• HEIGHT_PACKED 490
• WIDTH_PACKED 880
• DEPTH_PACKED 640
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 15.5
• WEIGHT_GROSS 23.0
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX 663
• CHIMNEY_HEIGHT_EXHAUST_MIN 420
• CHIMNEY_HEIGHT_RECIRC_MAX 750
• CHIMNEY_HEIGHT_RECIRC_MIN 457
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A+
• ENERGY_ANNUAL 31.7
• FLUID_DYNAMIC_EFFICIENCY 37.1
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 69.7
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 75.8
• GREASE_FILTER_CLASS C
• AIR_FLOW_MAX 431
• AIR_FLOW_MIN 223
• AIR_FLOW_BOOST 768.0
• SOUND_POWER_MAX 56
• SOUND_POWER_MIN 39
• SOUND_POWER_BOOST 68
• POWER_CONS_STANDBY 0.28
• POWER_OFF_MODE_2010 noData
• NOISE 56
• NOISE_BOOST 68
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 130
• MAX_OUTPUT_EXTRACTION 431
• BOOST_OUTPUT_EXTRACTION 768
• MAX_OUTPUT_RECIRCULATION 427
• BOOST_OUTPUT_RECIRCULATION 687
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 502
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES DWZ0BX6K1,DWZ0BX6L1,DWZ1KK1B6,DWZ1KK1I6,DWZ1KK1V6
• SPEED_SETTINGS noData
• LAMPS_TYPE N/A

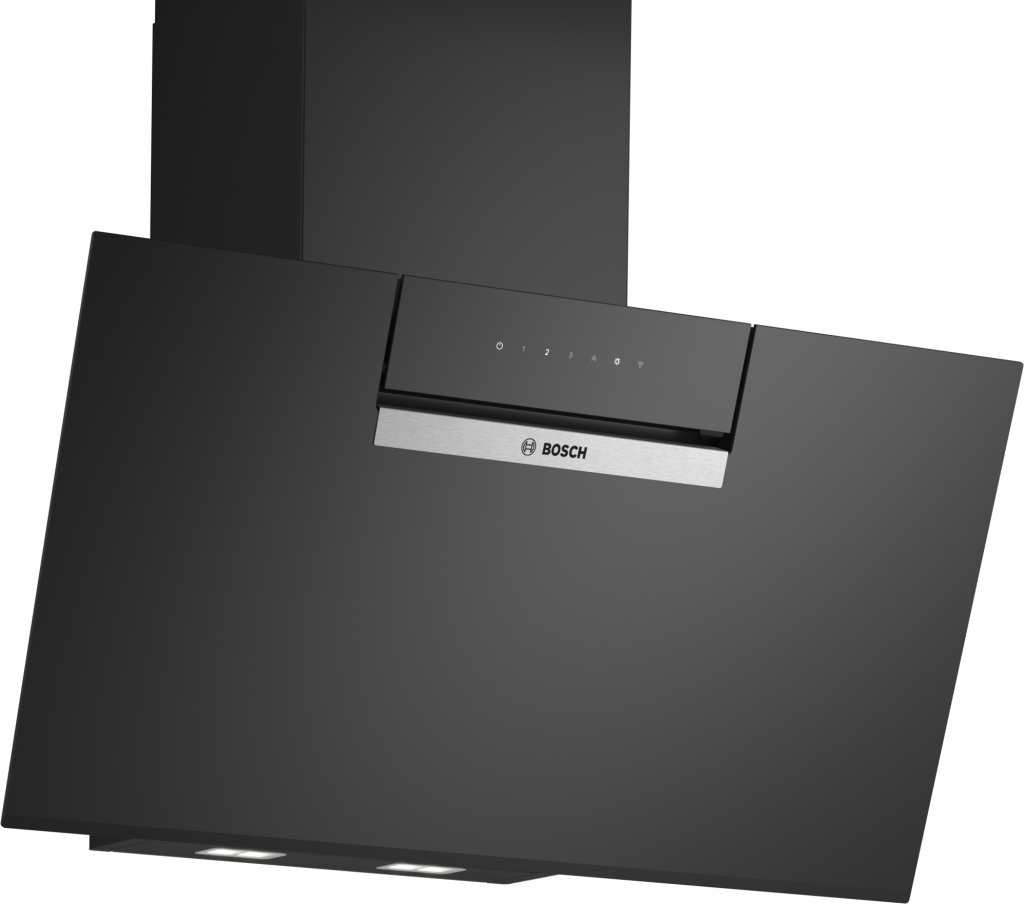

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/21574053_DWK87FN60_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/22519367_DWK87FN60_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/22519444_DWK87FN60_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/22519369_DWK87FN60_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/23222187_DWK87FN65_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/22519386_DWK87FN60_PGA5_def.jpg
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Home Connect: controla la campana desde la app.
• USP_2 Motor EcoSilence: campana eficiente y silenciosa.
• USP_3 Smart Hood Atomatic: se regula automáticamente según los ajustes de la placa mientras cocinas.
• USP_4 Campana ultrasilenciosa: máximo rendimiento, con mínimo ruido.
